Brief introduction:


Electrical control cabinet, used together with electric heater, can realize the power distribution, control, interlocking for the heater. The common used models of control cabinet are GGD, MNS, Rittal.

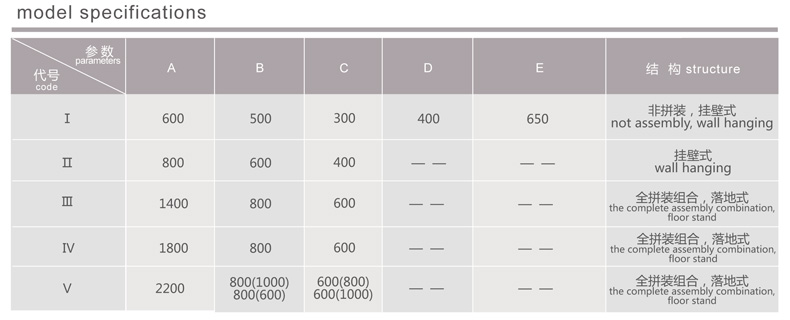

Main technical parameters of electrical control cabinet:


environment temperature: -20～+45℃
using place: non-explosion-proof, indoor, outdoor
structure: assembly combination
nominal voltage: ≤690V，50Hz/60Hz



The power distribution and control in non-explosion-proof place:

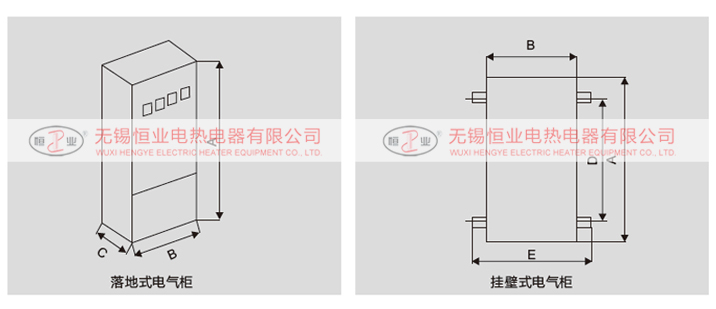

(1)Wall hanging electrical control cabinet
①Switch control
②Stepless adjustable power control
◆　Features: suitable used in small power, single decentralized control places

Note:It can be customized according to customers'requirements

①Switch control
②Stepless adjustable power control
③Mixed type control of switch control and stepless adjustable power control
④Program control

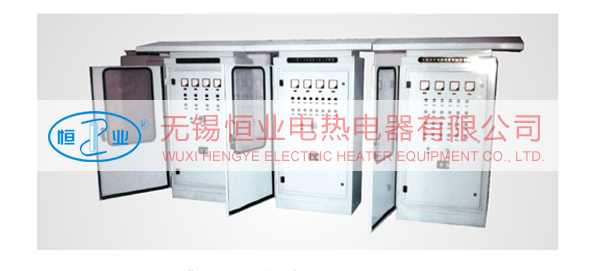

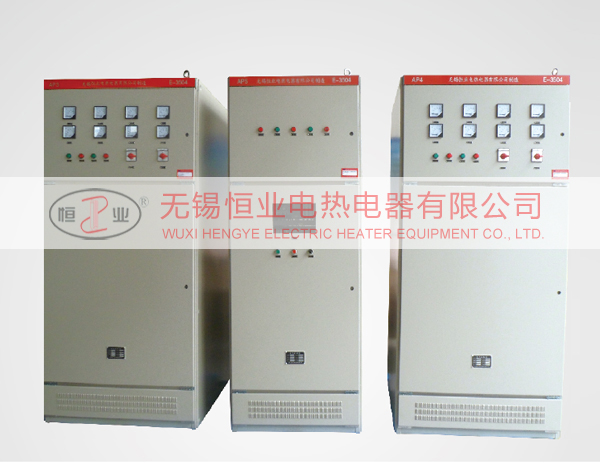

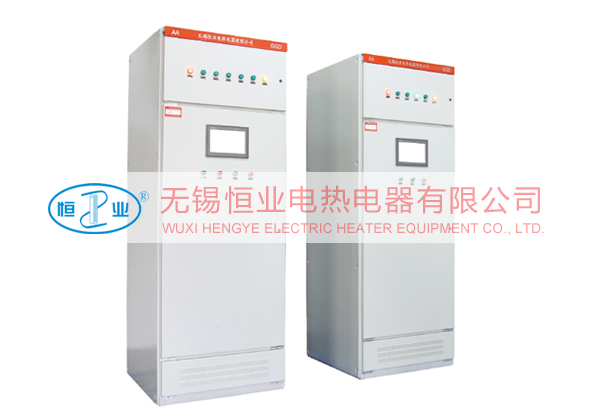

◆　Features: suitable used for power distribution and control in indoor and outdoor of non-explosion-proof places. Indoor floor stand electrical control cabinet is convenient for centralized power distribution and management. It also can make up combination control with DCS system or central control room. It is more appropriate for high-power heater and heating system with more interlocking and more complicated control.
